rate my server

Manged to grow a popular site in my area and finally getting around to switching out the server at our local enterprise data center leased rack space.

Rate my build

  • TYAN S7066GM3NR Motherboard
  • Dual Xeon E5-2670v2 (32 threads @ 2.6 GHz)
  • 8x 8GB DDR3-1600 ECC (64GB quad channel)
  • LSI Megaraid SAS 9261-8i /w 512 cache (hw raid controller)
  • 4x 2TB HP Enterprise SAS 6Gbps Hard Drives (raid 10)
  • Kingston HyperX Predator 240GB 4xPCIe SSD (caching)
  • 1TB 2.5" SATA hard drive (local backup storage)

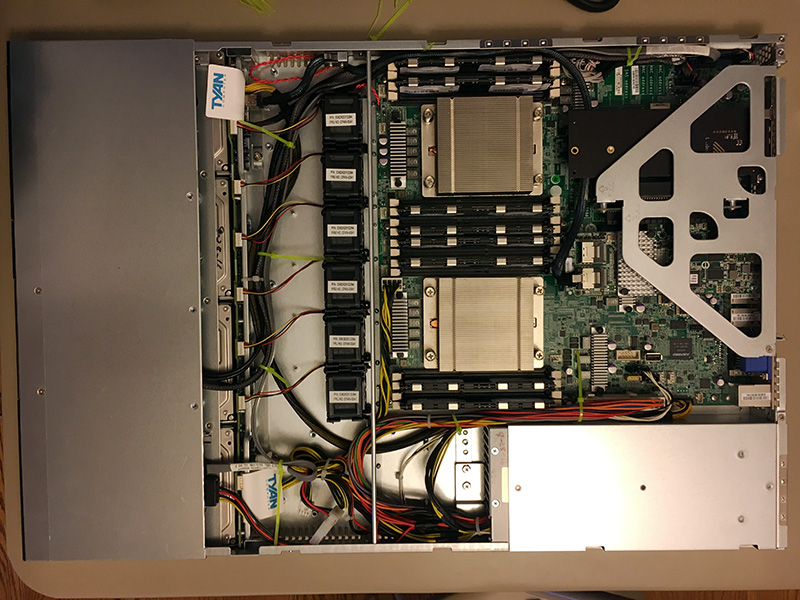

20160928_210114141_iOS.jpg · 199.6K · 668 views
Quote · 28 Sep 2016

Should be fine for the next 2 to 3 years if i had to guess.

I just did a dell c6105 last year... older server then yours i think.



Some of the specs if interested:

2 U - four nodes 24 drive bays

dual 1200 watt power supplies

each node has:

2x AMD Opteron 4386's 16 physical cores total per node

32 gigs of ram (512GB max) 12 slots per node

1x dell 9265-8i/w 1GB cache per node (raid 0 setup)

2x Samsung 950 pro's 512gb each (6 per node max)

dual intel 10gbit Ethernet per node



My thought was to do a theater room with 4 projectors  to do VR and of course movies and light gaming.

1 Node per projector per wall in a 12 by 12 room ...

The problem i am having now is finding a 4k graphics card that is low profile single slot that will fit and run off the pci express slot and under 65 watts i think.

So as of right now it is just sitting on the shelf doing nothing but collecting dust.

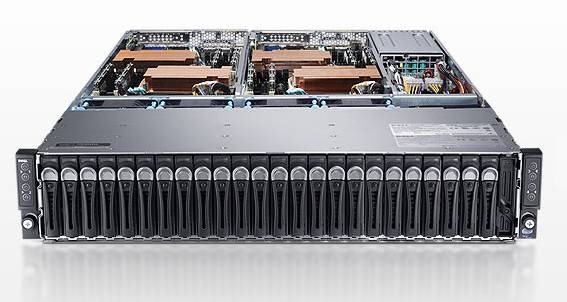

c6105-front-view.jpg · 40.9K · 691 views

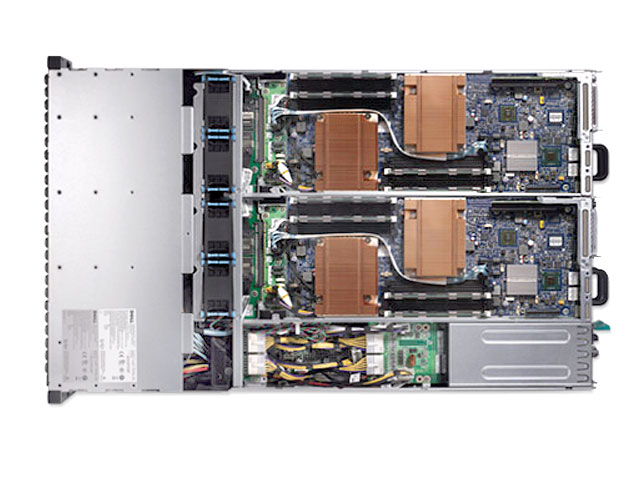

c6105-top-view.jpg · 58.5K · 759 views

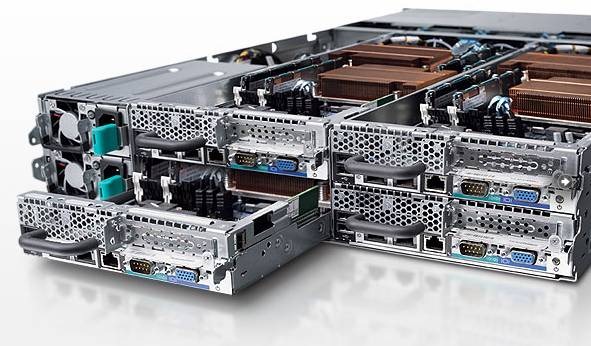

c6105-back-view.jpg · 79.1K · 687 views
